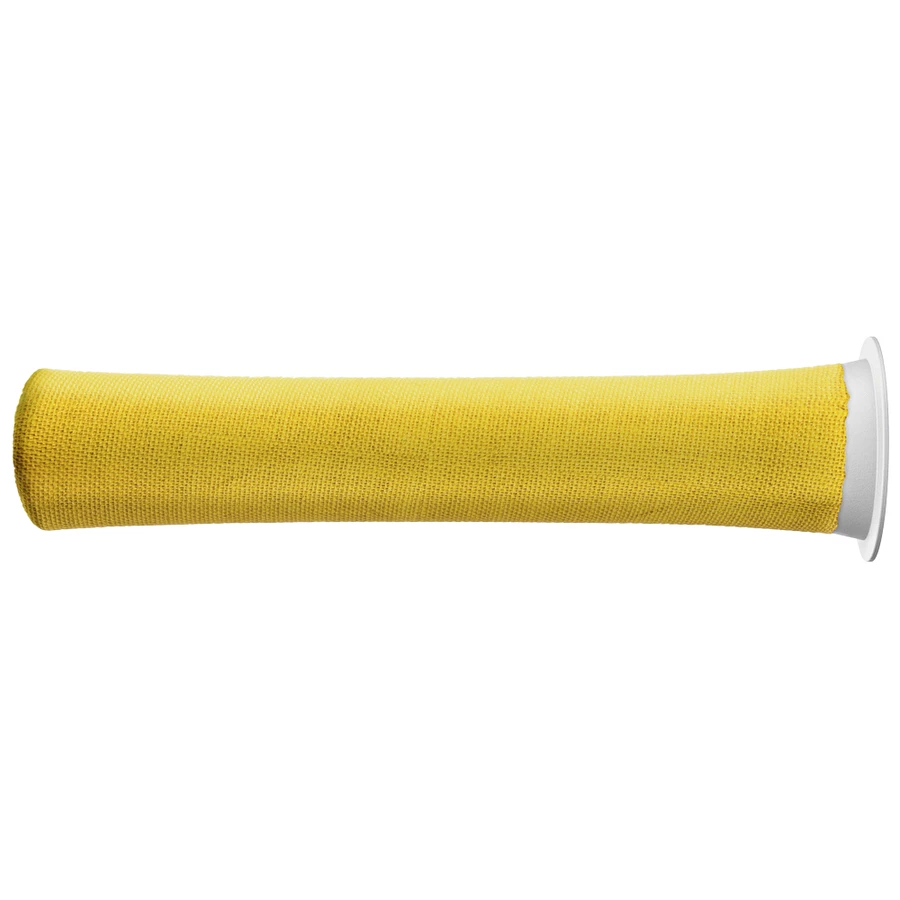

FIS H 16 x 85 N mesh sleeve

Manufacturer: Fischer
Availability: Available up to 48 hours
Delivery method:
Manufacturer: Fischer
Availability: Available up to 48 hours

Product description

The fischer mesh sleeve is a system element used with fischer injection mortars for honeycomb masonry. The anchor sleeve is placed in a drilled hole and filled with mortar from below. When setting the bar anchor, the mortar pushes the mesh outwards and joins with the honeycomb brick to form a fastening. The loads are thus transferred to the ground.
Benefits
  • The structure of the anchor sleeve enables even distribution of the mortar in the drilled hole, thus ensuring safe anchoring.
Main features
  • The mesh construction enables optimal mechanical locking in honeycomb bricks.
Usage
  • Brick wall anchoring with FIS V, FIS VL, FIS P Plus, FIS P and FIS GREEN injection mortars (without approval)
Building Materials
Suitable for:
  • ceramic blocks
  • Lightweight hollow concrete blocks
  • Concrete blocks
  • silicate blocks
  • full silicate blocks
  • Full brick
  • aerated concrete panels
  • Thick-ribbed ceilings made of hollow blocks and other hollow blocks
  • Full aerated concrete and other building materials

* Detailed information on the subject can be found in the registration document.

functionality
  • The anchor sleeve is placed in a drilled hole and filled with mortar from the sleeve base.
  • Rotation of the anchor pushes the mortar through the mesh of the anchor sleeve, adapting perfectly to the shape of the hole in the ground.
  • The attachment takes over the load.

Technical data

Hole diameter d 0 16 [Mm]
min. hole depth h 1 95 [Mm]
min. anchorage depth of the sleeve h p 90 [Mm]
Amount of mortar for one sleeve 15 [scale units]
matches to Ø8 / M8
20
GTIN (EAN-Code) 4006209504703
