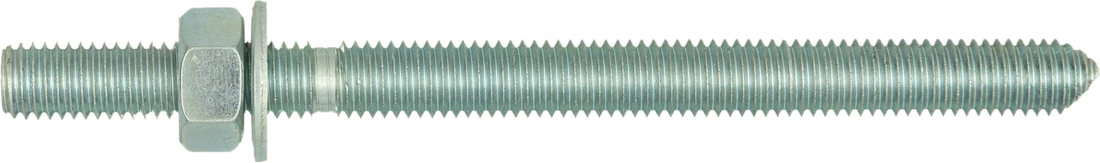

Metric carbon steel threaded rod class 5.8 R-STUDS-FL M10x130..

Product description

Size: M10x130mm

Features and Benefits:

• The rod is part of a high load anchoring system for use with an anchor glued in capsules, cartridges or in the CFS + system
• Can be used in hollow substrates using a mesh
• Flat tip for quick manual installation without using a wrench
• Can be used in dowel joints or wall-foundation connections. (Contact with technical advisor)
• The rod can be uninstalled if an internal threaded sleeve is used

Apps:

• Fasteners with bonded anchors in solid and hollow masonry substrates
• Reinforcements, supports
• railings
• shelves
• brackets
• railings
• Window elements
• Scaffolding
• Machinery

Installation instructions:

1. Drill a hole of suitable diameter and depth.
2. Vigorously clean the hole with a pump and brush.
3. For hole substrates, place the mesh sleeve in the hole in the recommended position.
4. Fill the hole with resin to the recommended level (follow the assembly instructions appropriate for the type of resin).
5. Slowly insert the metric rod into the resin hole until the recommended anchoring depth is reached.
6. Leave to set for the time required for application.
7. Attach the fixture and tighten the nut to the required tightening torque.
