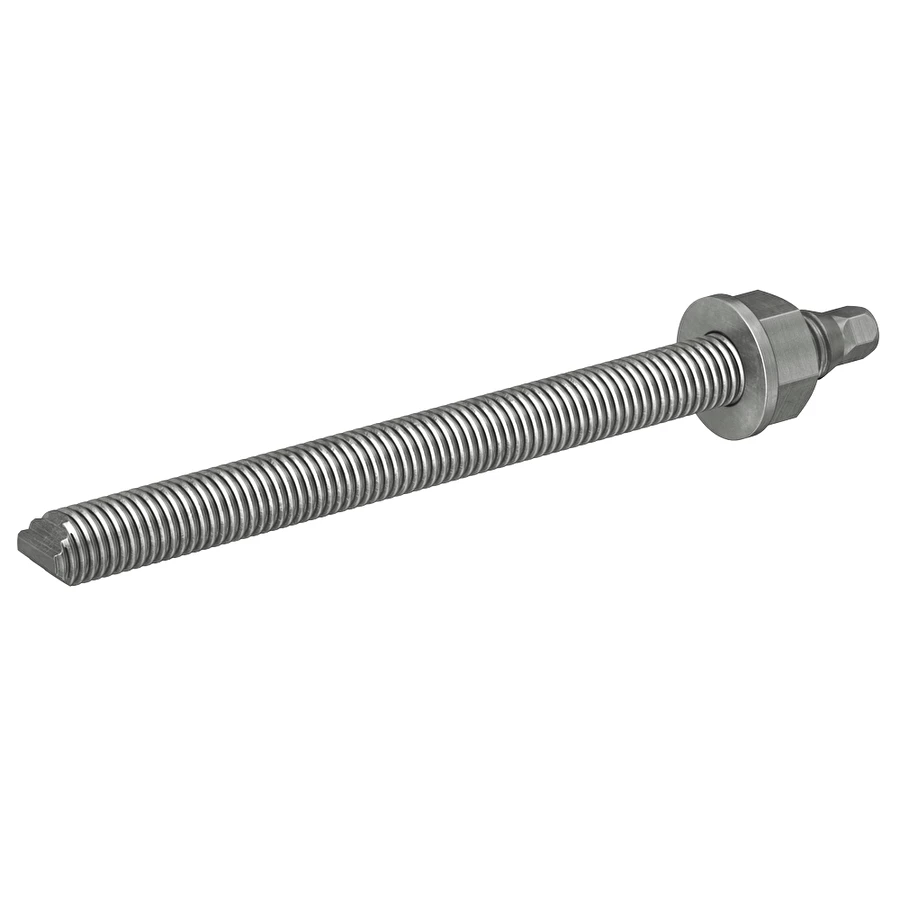

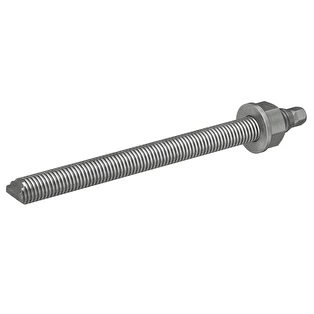

Threaded rod RG M 12 x 160 fvz

Manufacturer: Fischer
Availability: Available up to 48 hours
Delivery method:
See other variants
Manufacturer: Fischer
Availability: Available up to 48 hours

Product description

Main features
  • Approved for anchoring in cracked and non-cracked concrete, solid masonry, honeycomb masonry and aerated concrete in combination with various mortar from cartouches or fischer injection mortars.
  • Anchor rod with an oblique edge and a hex head for simple assembly with a fixed-volume injection cartridge.
  • Stainless steel for outdoor applications.
The fischer RG M rod anchor is made of galvanized steel grade 5.8. The anchor rod belongs to the system accessories that work with various fischer cartridges and injection mortars. The use of mortar with cartridges in a fixed volume is particularly cost-effective for disposable fixings. When using a resin ampoule, set the RG M anchor rod in a twisting motion while hammering with a hammer drill. The ampoule is broken during deposition and mixing and activation of the mortar takes place. When introducing the injection mortar, the anchor rod is pressed into the hole by hand with gentle rotation. The system is particularly adapted to cost-effective fastening of machine elements, steel structures and supports inside buildings.
Benefits
  • The wide range of RG M rods from M8 to M30 opens up possibilities for many applications by offering great flexibility.
  • The wide range of approved steel types for RG M rods in all corrosion resistance classes ensures the highest operational safety.
  • Read the approvals for resin and mortar ampoules.
Usage
  • Anchoring with RSB and RSB mini resin ampoules
  • Anchoring with RM II resin ampoules
  • FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P and FIS GREEN injection mortar
Building Materials
  • In conjunction with fischer resin ampoules approved or intended for cracked and non-cracked concrete.
  • In combination with fischer injection mortars approved for various building materials.
* Detailed information on the subject can be found in the registration document.

Permit

  • ETA-02/0024
  • DoP No. 0007
  • DoP No. 0007 - EN
  • DoP No. 0072
  • DoP No. 0094 - EN
  • DoP No. 0756-CPD-0300
  • DoP No. 0756-CPD-0301
  • DoP No. 0756-CPD-0490
Functioning
  • Thanks to the sloping edge, the RG M threaded rod is particularly suitable for use with resin ampoules.
  • The internally threaded rod RG M is mounted by hammer drilling with a suitable tool, making a rotational movement while driving the rod.
  • During deposition, the oblique edge of the RG M rod breaks the ampoule, mixes the ingredients and activates the resin.
  • Can also be used with injection mortar. In this case, the threaded rod is manually inserted into the drilled hole with a slight rotational movement until it reaches the bottom of the hole.

Technical data

ETA approval
Hole diameter d 0 14 [Mm]
Hexagon socket SW 6 8 [Mm]
Spanner size (for hex nut) SW 19 [Mm]
10
GTIN (EAN-Code) 4048962115246
Legend = Permission available
