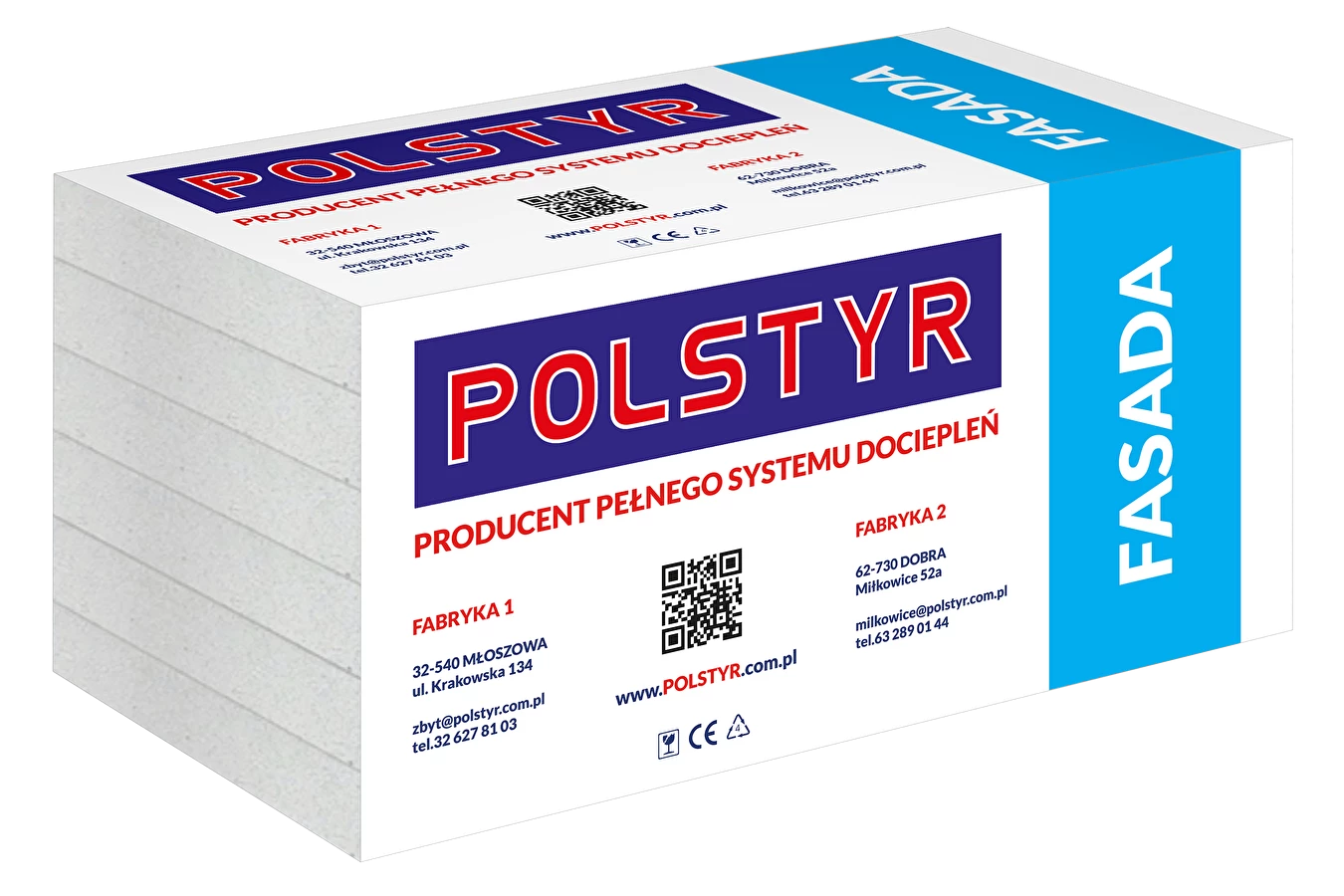

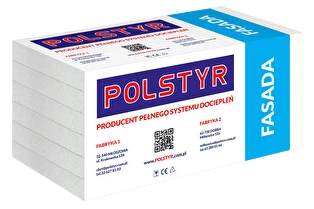

POLYAMIDE STYROPIAN λD ≤ 0.044 POLYSTYr 15 cm

Product description

Facade expanded polystyrene board. Self-extinguishing product. Product with thermal conductivity λ _D ≤ 0.042 W / mK.

Purpose and scope of application :

Thermal insulation of diaphragm walls with a ventilated or non-ventilated gap;

Thermal insulation of walls with cladding, frame construction;

Thermal insulation in internal partitions;

Thermal insulation of ceilings with facing from below;

Thermal insulation of floors between joists;

Thermal insulation in light skeletal ceilings, with facing;

Inter-rafter thermal insulation;

Thermal insulation in ventilated roofs.

Product properties are checked and evaluated in accordance with PN-EN 13163 by the Factory Production Control and external units.

Product placed on the market on the basis of a conformity assessment system 3.

Thermal resistance:

Technical Specifications:

3.1. [PN-EN 822] Length and width: 1000 x 500 [mm] / ± 0.6%

3.2. [PN-EN 823] Thickness: 20 ÷ 200 [mm] / ± 2 [mm]

3.3. [PN-EN 824] Rectangularity: ± 5/1000 [mm]

3.4. [PN-EN 825] Flatness: ± 15/1000 [mm]

3.5. [PN-EN 12089] Flexural strength: ≥ 75 [kPa]

3.6. [PN-EN 1603] Dimensional stability under constant normal laboratory conditions (23 ^o C, 50%

relative humidity): ± 0.5%

3.7. [PN-EN 1604] Dimensional stability under specific temperature and humidity conditions (48 h, 70 ^o C): ± 3%

3.8. [PN-EN 1607] Tensile strength perpendicular to the face surfaces: ≥ 80 [kPa]

3.9. [PN-EN 13501-1; PN-EN ISO 11925-2] Reaction to fire class: E

3.10. [PN-EN 12667] Thermal conductivity coefficient λ _D ≤ 0.044 [W / mK]

DIMENSIONS AVAILABLE:
Width: 50 cm
Length: 100 cm

Thickness: 1-60 cm

straight edge it is possible to buy milled polystyrene additional 5 PLN
